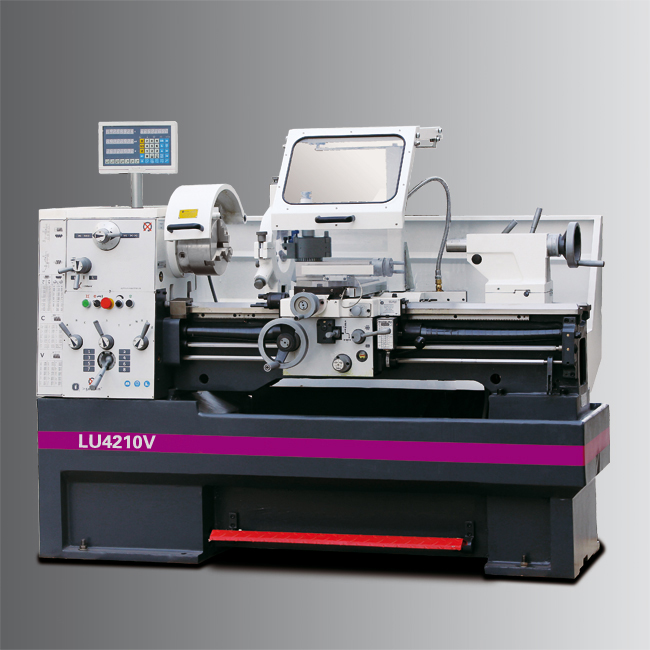

LU4210V型车床

Type	LU 4210 V
Item No	P340 3150
Machine datas
Electrical connection	400 V / 3 Ph ~50 Hz
Total connected value	5.5 kW
Coolant equipment	100 W
Working areas
Centre height	210 mm
Centre width	1'000 mm
Turning Ø over lathe bed	420 mm
Turning Ø over cross slide	250 mm
Turning Ø in the bed bridge	590 mm
Length of bed bridge	260 mm
Bed width	250 mm
Speeds
Spindle speed	30 - 550 min-1 / 160 - 3'000 min-1*
Number of steps	2 steps, electrically adjustable speed
Headstock
Spindle taper	MT 6
Spindle seat	Camlock DIN ISO 702-2 Nr. 6
Spindle drilling, rod passage	Ø 52 mm
Slide
Travel top slide	140 mm
Travel cross slide	230 mm
Longitudinal feed in the range of	0.05 - 1.7 mm/rev;
Transverse feed in the range of	0.025 - 0.85 mm/rev;
Pitch - Metric in the range of	0.2 - 14 mm/rec;
Pitch - Inch in the range of	72 - 2 threads/1“;
Trapezoid thread in the range of	8 - 44;
Modular thread in the range of	0.3 - 3.5;
Quadruple tool holder seat height	Max. 20 x 20 mm
Tailstock
Tailstock seat	MT 4
Tailstock - sleeve travel	120 mm
Dimensions
Length x width x height	2'025 mm x 915 x 1'615 mm
Net weight	1'550 kg
